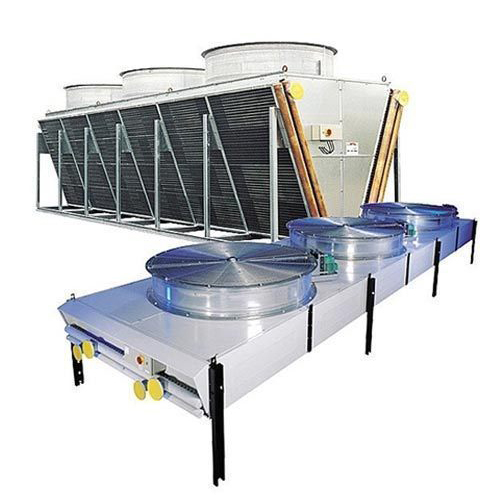

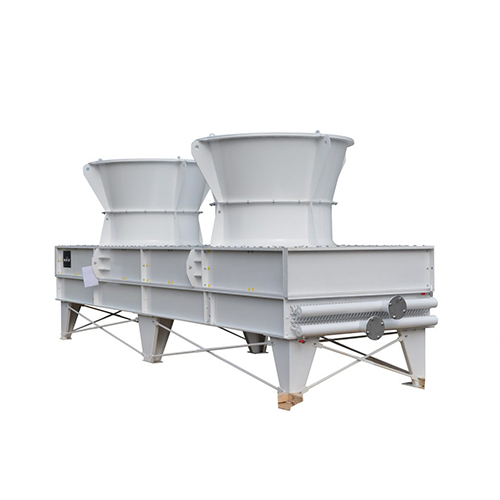

Fin Fan Cooler

Fin Fan Coolers, also known as Air Cooled Heat Exchangers, are widely used industrial heat transfer equipment for cooling hot process fluids using ambient air as the cooling medium. The term Fin Fan Cooler is commonly used because the equipment uses finned tubes and fans to transfer heat from the process fluid to the surrounding air.

In a Fin Fan Cooler, the hot process fluid flows through the tube side while ambient air is circulated across the external surface of the finned tubes. The fins increase the available heat transfer surface area, allowing effective heat dissipation and improved cooling performance.

Fin Fan Coolers provide an air-based alternative to water-cooled cooling systems and can be particularly useful where water availability or water consumption is an important consideration. Their configuration can be selected according to the required cooling duty, process conditions, ambient temperature, airflow requirements, and project specifications.

​What Is a Fin Fan Cooler?

A Fin Fan Cooler is an air-cooled heat transfer equipment used to cool hot process fluids without directly using water as the cooling medium. The hot process fluid flows through finned tubes while ambient air is moved across the external tube surface by axial fans.

Fins increase the external heat transfer area of the tubes, allowing effective heat dissipation even when the available air-side surface area is limited. The heated air carries the transferred heat away from the equipment, while the cooled process fluid exits the tube circuit.

How Does a Fin Fan Cooler Work?

The operating principle of a Fin Fan Cooler is based on indirect heat transfer between a process fluid and atmospheric air.

Hot process fluid enters the finned tube bundle and flows through the tubes. Axial fans draw or force ambient air across the finned tube surfaces. Heat from the process fluid passes through the tube wall and fins into the surrounding air.

The cooled fluid is then collected and returned to the process system.

The overall cooling performance depends on factors such as:

• Process fluid temperature
• Required outlet temperature
• Heat load
• Ambient air temperature
• Airflow rate
• Tube and fin configuration
• Fan capacity
• Number of tube rows
• Available heat transfer area
• Allowable pressure drop

Key Components of a Fin Fan Cooler

A typical industrial Fin Fan Cooler consists of several important components designed to work together for reliable heat transfer.

Finned Tube Bundle

The finned tube bundle provides the primary heat transfer surface. Extended fins increase the external surface area and improve heat transfer between the process fluid and ambient air.

Axial Fans

High-performance axial fans provide the required airflow across the finned tube bundle. Fan selection is based on cooling duty, air volume, static pressure, operating conditions, and required efficiency.

Fan Drive System

Depending on the application, fan drives can be configured using suitable motor and drive arrangements to provide reliable and controlled operation.

Plenum Chamber

The plenum chamber helps distribute airflow across the tube bundle and supports uniform air movement for consistent thermal performance.

Supporting Structure

The structural frame supports the tube bundle, fans, headers, access arrangements, and associated components. The structure is designed according to equipment size, operating conditions, and installation requirements.

Headers and Tube Sheets

Headers provide process-fluid distribution and collection, while tube sheets support the tube bundle and maintain the required mechanical integrity of the equipment.

Types of Fin Fan Coolers

Fin Fan Coolers can be configured in different arrangements depending on the process and installation requirements.

Forced Draft Fin Fan Cooler

In forced draft arrangements, fans are positioned below the tube bundle and push ambient air upward through the finned tubes.

Induced Draft Fin Fan Cooler

In induced draft arrangements, fans are positioned above the tube bundle and draw air through the heat transfer surface.

Custom Fin Fan Cooler Systems

Special configurations can be developed for projects requiring specific thermal performance, compact layouts, process connections, maintenance access, or installation restrictions.

Materials Used in Fin Fan Coolers

Material selection depends on process fluid properties, operating temperature, pressure, corrosion conditions, and project specifications.

Common material options include:

• Carbon steel
• Stainless steel
• LTCS
• Aluminium fins
• Stainless steel fins
• Copper and suitable alloy materials
• Other materials based on process requirements

The tube, fin, header, structural, and connection materials can be selected individually according to the design conditions.

Fin Fan Cooler Design Considerations

Proper engineering is important for achieving reliable Fin Fan Cooler performance. Our designs consider the complete operating conditions of the application rather than selecting equipment based only on cooling capacity.

Important design parameters include:

• Required heat duty
• Process inlet and outlet temperatures
• Ambient design temperature
• Process fluid flow rate
• Fluid composition and properties
• Operating and design pressure
• Allowable pressure drop
• Airflow requirements
• Tube and fin selection
• Fan capacity
• Equipment footprint
• Maintenance requirements

The final configuration is selected according to the customer’s process and project specifications.

Advantages of Fin Fan Coolers

Fin Fan Coolers provide several advantages for industrial cooling applications:

• Reduces dependence on cooling water.
• Suitable for locations where water availability is limited.
• Provides indirect cooling without mixing the process fluid with the cooling medium.
• Large finned surfaces provide effective heat transfer.
• Suitable for continuous industrial operation.
• Can be customized for different process fluids and heat loads.
• Suitable for large-scale industrial installations.
• Supports lower water consumption in suitable applications.
• Can be configured for different plant layouts and maintenance requirements.

Fin Fan Cooler Applications

Fin Fan Coolers are used across several process industries where air-based heat rejection is required.

Typical applications include:

• Oil and gas processing plants
• Refineries
• Petrochemical plants
• Chemical processing industries
• Fertilizer plants
• Power generation facilities
• Steel and metallurgical industries
• Gas processing plants
• Compressor and process cooling systems
• Industrial manufacturing plants

They can be used for cooling process fluids, hydrocarbons, lubricating oils, gases, and other compatible fluids depending on the application.

Fin Fan Cooler vs Water-Cooled Heat Exchanger

The main difference is the cooling medium.

A Fin Fan Cooler uses atmospheric air to remove heat from the process fluid, while a conventional water-cooled heat exchanger uses cooling water.

Fin Fan Coolers can therefore be particularly useful where water availability, water treatment, cooling-water infrastructure, or water consumption are important considerations.

The appropriate cooling technology depends on process conditions, ambient temperature, required outlet temperature, utility availability, operating cost, and project requirements.

Customized Fin Fan Cooler Manufacturing

Every industrial cooling application has different operating conditions. Therefore, Fin Fan Coolers should be selected and engineered according to the actual process requirements.

We provide customized configurations based on required heat duty, process flow rate, operating pressure, temperature conditions, ambient conditions, materials, fan arrangement, tube bundle dimensions, and installation space.

Our engineering team can develop the required configuration based on customer drawings, process data sheets, technical specifications, and project requirements.

Why Choose Our Fin Fan Coolers?

Heat Transfer Equipments Pvt. Ltd. provides engineered heat transfer equipment for demanding industrial applications.

Our Fin Fan Cooler solutions focus on:

• Application-specific engineering
• Customized thermal and mechanical design
• Suitable tube and fin material selection
• Reliable fan and drive arrangements
• Robust structural construction
• Inspection and testing as required
• Project-specific manufacturing requirements
• Domestic and export project support

Frequently Asked Questions

Is a Fin Fan Cooler the Same as an Air Cooled Heat Exchanger?

A Fin Fan Cooler is commonly used as a name for an air-cooled heat exchanger that uses finned tubes and fans for process-fluid cooling. The exact terminology can vary between industries and applications.

Why are fins used in a Fin Fan Cooler?

Fins increase the external heat transfer surface area of the tubes. This helps improve heat transfer between the process fluid and the surrounding air.

What industries use Fin Fan Coolers?

Fin Fan Coolers are commonly used in oil and gas, refineries, petrochemical, chemical, fertilizer, power generation, steel, gas processing, and other industrial plants.

What information is required to select a Fin Fan Cooler?

Important information includes heat duty, process-fluid flow rate, inlet and outlet temperatures, operating pressure, fluid properties, ambient temperature, allowable pressure drop, and installation requirements.

Can Fin Fan Coolers be customized?

Yes. Fin Fan Coolers can be customized according to heat duty, process conditions, materials, fan arrangement, tube configuration, equipment dimensions, and project specifications.

Request a Quote for a Fin Fan Cooler

Looking for a reliable Fin Fan Cooler manufacturer in India?

Share your process flow rate, inlet and outlet temperatures, operating pressure, heat load, fluid details, ambient conditions, and installation requirements with our engineering team.

Heat Transfer Equipments Pvt. Ltd. can provide a customized Fin Fan Cooler solution based on your process and project requirements.
