U Tube Bundle Heat Exchanger

A U Tube Bundle Heat Exchanger is designed for heat-transfer applications where operating conditions may involve elevated temperatures, pressure, and significant thermal expansion. The tubes are formed into a U-shaped configuration, allowing the tube bundle to accommodate thermal movement while maintaining an effective heat-transfer surface.

U-tube bundles can be supplied for new heat exchanger systems as well as replacement and refurbishment requirements. Depending on the equipment design and process conditions, configurations can include fixed or removable arrangements, single-wall or double-wall tubes, and different tube materials.

We also provide U-tube bundle assemblies, along with inspection, testing, repair, cleaning, and replacement support for existing equipment.

What Is a U Tube Bundle Heat Exchanger?

A U Tube Bundle Heat Exchanger uses a group of U-shaped tubes to transfer heat between two process fluids without allowing them to mix. One fluid flows through the tube side, while the other passes around the external tube surfaces within the shell or heat-transfer chamber.

The U-shaped geometry allows the tubes to expand and contract with temperature changes. This makes the configuration particularly useful for applications involving substantial temperature differences between the process fluids.

U-tube bundles can be engineered according to heat-transfer duty, operating pressure, temperature, fluid characteristics, material requirements, and available equipment dimensions.

How Does a U Tube Bundle Heat Exchanger Work?

The process fluid enters the tube-side circuit and travels through the U-shaped tubes before returning through the opposite leg of the bundle. The second process fluid flows on the shell side and transfers heat across the tube walls.

Depending on the application, the equipment can be used for heating or cooling. Heat moves from the higher-temperature fluid to the lower-temperature fluid through the tube wall.

The U-shaped tubes also provide flexibility during thermal cycling. Instead of requiring the tubes to remain completely rigid, the bend allows controlled thermal expansion within the bundle.

Heat-transfer performance depends on factors such as:

• Fluid flow rates
• Inlet and outlet temperatures
• Operating pressure
• Heat-transfer area
• Tube diameter and length
• Tube-side velocity
• Shell-side flow conditions
• Fluid properties
• Fouling tendency

U Tube Bundle Design & Construction

The design of a U-tube bundle depends on the thermal duty, mechanical requirements, fluid characteristics, and installation arrangement.

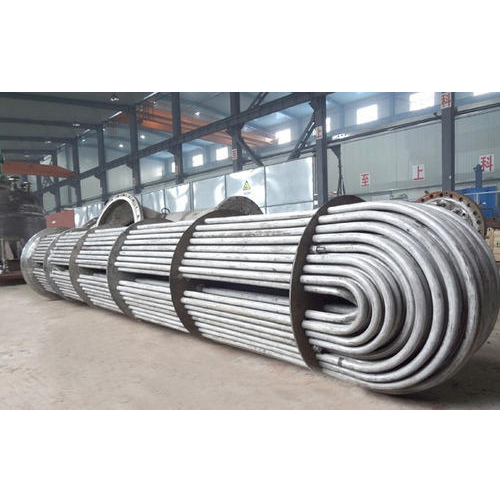

A typical bundle consists of U-shaped tubes supported within a tube bundle structure. Tube sheets, supports, spacers, baffles, and associated connections are selected according to the exchanger configuration.

Important design considerations include:

• Tube outside diameter
• Tube wall thickness
• U-bend radius
• Tube length
• Tube pitch
• Number of tubes
• Heat-transfer surface area
• Tube material
• Baffle arrangement
• Operating pressure
• Design temperature
• Corrosion allowance
• Fouling allowance

The bundle can be manufactured according to new equipment requirements or based on an existing bundle when a replacement is required.

U Tube Bundle Configurations

U-tube bundles can be configured to suit different equipment designs and operating requirements.

Available arrangements may include:

• U-tube bundles
• Straight tube configurations
• Single-wall U-tubes
• Double-wall U-tubes
• Fixed tube bundle arrangements
• Removable tube bundle arrangements

The appropriate configuration depends on factors such as operating temperature, pressure, maintenance requirements, fluid compatibility, and available installation space.

Fixed and Removable Tube Bundles

Tube bundles can be designed as fixed or removable assemblies depending on the construction of the heat exchanger and the required maintenance approach.

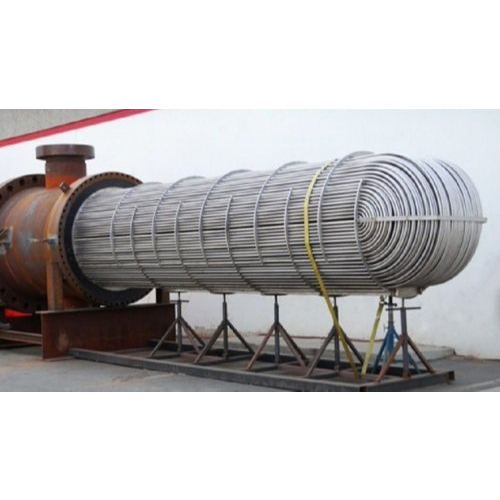

A fixed arrangement provides a permanent tube-bundle installation within the equipment, while a removable bundle can be withdrawn for inspection, cleaning, repair, or replacement.

For projects requiring specific maintenance or accessibility requirements, the appropriate tube-sheet and bundle arrangement should be selected during the design stage.

Single Wall and Double Wall U Tube Bundles

Single-wall U-tubes use one tube wall to separate the two process fluids. They are suitable for applications where the process conditions and fluid characteristics allow conventional tube construction.

Double-wall U-tubes provide an additional layer between the process fluids and may be considered where enhanced leak detection or additional separation is required.

The selection between single-wall and double-wall construction depends on fluid properties, pressure conditions, temperature, safety requirements, and applicable design specifications.

Tube Materials and Construction

Tube material selection is important for achieving reliable service life and maintaining heat-transfer performance.

Depending on the application, U-tube bundles can be manufactured using materials such as:

• Carbon steel
• Stainless steel
• Duplex stainless steel
• Copper alloys
• Copper-nickel alloys
• Titanium
• Other suitable engineering alloys

Material selection is based on process-fluid compatibility, corrosion resistance, operating temperature, pressure, mechanical strength, and expected service conditions.

Both seamless and welded tube options may be considered depending on the application and design requirements.

U Tube Bundle Replacement & Customization

A replacement U-tube bundle can be developed based on the dimensions and specifications of an existing heat exchanger bundle.

Existing equipment can be evaluated to determine details such as:

• Bundle dimensions
• Tube diameter
• Tube length
• Tube material
• Tube wall thickness
• Tube pitch
• Number of tubes
• U-bend geometry
• Support arrangement
• Operating conditions

This approach can be useful when an existing bundle requires replacement without replacing the complete heat exchanger.

Customized U-tube bundle assemblies can also be supplied for specific equipment and process requirements.

U Tube vs. Straight Tube Heat Exchangers

U-tube and straight-tube configurations offer different characteristics, and the appropriate choice depends on the application.

U-tube construction provides greater flexibility for thermal expansion and can be advantageous in systems with significant temperature differences. The compact arrangement can also be useful where installation space is limited.

Straight-tube designs may offer easier access for mechanical cleaning and direct tube inspection, depending on the equipment construction.

The selection should consider:

• Operating temperature
• Thermal expansion
• Pressure conditions
• Fluid fouling tendency
• Cleaning requirements
• Maintenance access
• Available space
• Tube material
• Overall equipment design

There is no single configuration suitable for every application; selection should be based on the actual process and maintenance requirements.

Industrial Applications

U-tube bundle heat exchangers are used in industrial systems where dependable heat transfer is required under demanding operating conditions.

Industries commonly served include

• Oil & Gas Industry
• Chemical Processing Industry
• Petrochemical Industry
• Power Generation
• Fertilizer Industry
• Pharmaceutical Industry
• Food Processing Industry
• Pulp & Paper Industry
• Industrial Manufacturing

The final design is selected according to the process fluid, thermal duty, pressure, temperature, and material requirements.

Common Uses of U Tube Bundle Heat Exchangers

U-tube bundles are commonly used for:

Hydraulic Fluid Cooling

The exchanger can remove excess heat from hydraulic fluid and transfer it to a suitable cooling medium.

High-Temperature Applications

The U-shaped tube arrangement can accommodate thermal expansion, making it suitable for systems experiencing substantial temperature changes.

High-Pressure Applications

Suitable tube materials, wall thicknesses, and mechanical design can be selected for applications involving elevated operating pressures.

Replacement Heat Exchanger Bundles

U-tube bundles can be manufactured as replacement assemblies for existing equipment when the original bundle requires refurbishment or replacement.

Key Advantages

U-tube bundle construction provides several practical benefits:

• Accommodates thermal expansion
• Suitable for high-temperature service
• Can be designed for high-pressure applications
• Compact tube arrangement
• Suitable for different tube materials
• Available in single-wall and double-wall configurations
• Can be supplied as replacement bundles
• Suitable for selected hairpin-type arrangements
• Supports equipment refurbishment
• Can be customized according to existing bundle dimensions

The actual performance and service life depend on correct thermal design, material selection, fabrication quality, and operating conditions.

Testing, Repair & Cleaning

Proper inspection and maintenance can help extend the service life of a U-tube bundle.

Depending on the condition of the equipment, services may include:

• Visual inspection
• Tube inspection
• Pressure testing
• Leak testing
• Tube cleaning
• U-bend inspection
• Repair of suitable components
• Bundle refurbishment
• Replacement of damaged tubes
• Dimensional verification

Cleaning methods should be selected according to the tube material, deposit type, tube geometry, and equipment condition.

For existing bundles, inspection results can be used to determine whether cleaning, repair, refurbishment, or complete replacement is the most appropriate option.

U Tube Bundles for Hairpin Heat Exchangers

U-tube assemblies can also be used in hairpin-type heat exchanger arrangements where the process requires a compact heat-transfer configuration.

The U-shaped geometry provides a practical way to accommodate thermal movement while maintaining the required flow path. Tube dimensions, material, bend radius, and heat-transfer area can be selected according to the operating requirements of the hairpin exchanger.

Replacement or customized U-tube assemblies can be developed based on the dimensions and specifications of existing equipment.

Frequently Asked Questions (FAQ)

Why are U-tube bundles suitable for high-temperature applications?

U-tube bundles can accommodate thermal expansion and contraction through their curved tube design. This helps reduce thermal stress during temperature changes and supports reliable operation in high-temperature heat-transfer applications.

Why are U-shaped tubes used in heat exchangers?

The U-shaped configuration allows the tubes to expand and contract during temperature changes, making it useful for applications involving significant thermal cycling.

Can U-tube bundles be supplied as replacement assemblies?

Yes. Replacement bundles can be manufactured based on existing bundle dimensions, tube materials, construction details, and operating requirements.

What materials are used for U-tube bundles?

Depending on the service conditions, materials can include carbon steel, stainless steel, duplex stainless steel, copper alloys, copper-nickel alloys, titanium, and other suitable alloys.

Can U-tube bundles be used for high-pressure applications?

Yes. U-tube bundles can be designed for high-pressure service by selecting suitable tube dimensions, materials, wall thickness, and mechanical design according to the required operating conditions.

Can U-tube bundles be cleaned and repaired?

Yes. Depending on the bundle condition and construction, inspection, cleaning, testing, repair, and refurbishment services can be carried out.

Request a Quote for a U Tube Bundle Heat Exchanger

Looking for a U Tube Bundle Heat Exchanger or a replacement tube bundle for existing equipment?

Share your operating pressure, temperature, fluid details, heat-transfer duty, tube material, bundle dimensions, and other available specifications with our engineering team.

Heat Transfer Equipments can provide U-tube bundle assemblies, replacement bundles, inspection, testing, cleaning, and repair solutions based on the requirements of your heat-transfer equipment.

Contact us to discuss your requirement and receive a customized technical proposal and quotation.
