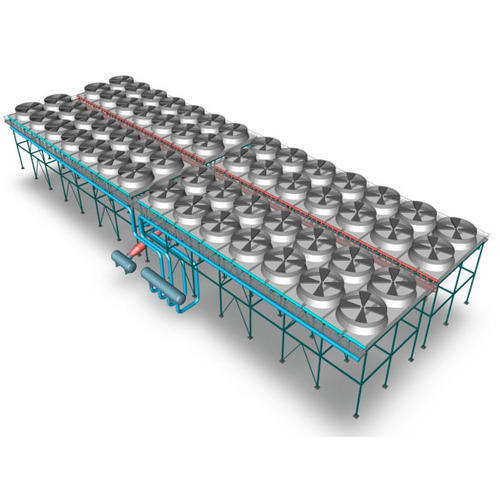

Finned Air Cooler

Heat Transfer Equipments Pvt. Ltd. is a Finned Air Cooler manufacturer in India, providing customized air-cooled heat transfer solutions for process cooling, heat rejection, and industrial applications where air is used as the cooling medium.

Finned Air Coolers can be designed for applications where cooling water is limited, unavailable, or not preferred. The tube arrangement, fin configuration, heat transfer area, materials, operating conditions, and connection details can be selected according to the process requirements.

What Is a Finned Air Cooler?

A Finned Air Cooler is a heat transfer equipment that removes heat from a process fluid by transferring it through finned tubes to ambient air.

The process fluid flows through the tubes while air passes across the external finned surfaces. The fins increase the effective heat transfer area, allowing heat to be rejected efficiently within a practical equipment size.

Finned Air Coolers can be designed for different process fluids, cooling duties, temperatures, pressures, and installation conditions.

How Does a Finned Air Cooler Work?

The operating principle is based on indirect heat transfer between a process fluid and ambient air.

The process fluid passes through the tubes, while air flows over the finned tube surfaces. Heat moves from the process fluid through the tube wall and fins before being released into the surrounding air.

Airflow can be provided using fans or other suitable arrangements depending on the equipment design.

Cooling performance depends on process flow rate, inlet and outlet temperatures, ambient conditions, heat transfer area, tube and fin configuration, airflow, fluid properties, and allowable pressure drop.

Finned Air Cooler Design and Construction

Finned Air Coolers are designed according to the required heat rejection duty, operating conditions, and available installation space.

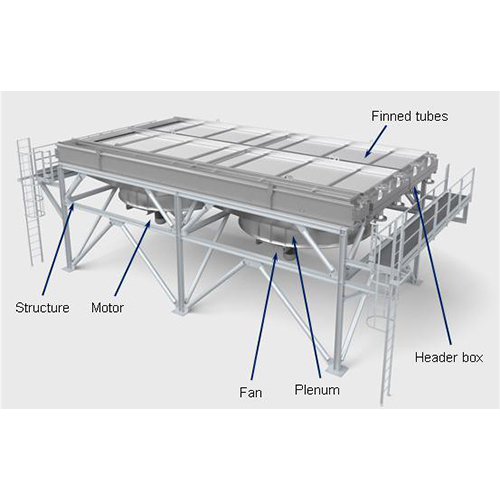

Typical construction can include:

• Heat transfer tubes
• Finned tube surfaces
• Tube headers or manifolds
• Fan and drive arrangement where required
• Supporting structure
• Inlet and outlet connections
• Protective casing or guards where required
• Mounting arrangement

Tube diameter, tube length, fin material, fin spacing, number of tube rows, heat transfer area, and overall dimensions can be selected according to the thermal and mechanical requirements.

Types of Finned Air Coolers

Different configurations can be considered according to the cooling duty and process requirements.

Forced Draft Finned Air Coolers

Fans are positioned to push air across the finned tube bundle, providing controlled airflow for suitable industrial cooling applications.

Induced Draft Finned Air Coolers

Fans draw air through the finned tube bundle and can provide a suitable airflow arrangement for process cooling duties.

Customized Finned Tube Coolers

Special configurations can be developed for applications with specific pressure, temperature, material, space, airflow, or connection requirements.

Finned Air Cooler Design Considerations

Proper design is important for achieving the required cooling performance and reliable operation.

Important parameters include:

• Required heat rejection duty
• Process fluid type
• Fluid flow rate
• Inlet and outlet temperatures
• Ambient air temperature
• Operating and design pressure
• Operating and design temperature
• Allowable pressure drop
• Tube and fin materials
• Heat transfer area
• Fin spacing and configuration
• Airflow requirements
• Fouling and corrosion conditions
• Installation space
• Maintenance requirements

The final design is selected according to actual process conditions and customer specifications.

Advantages of Finned Air Coolers

Finned Air Coolers can offer several advantages for suitable industrial applications:

• Does not require cooling water for heat rejection
• Suitable where water availability is limited
• Increased heat transfer area through finned surfaces
• Suitable for continuous industrial cooling duties
• Can handle different process fluids when properly designed
• Flexible equipment configurations
• Suitable for selected high-temperature process cooling applications
• Can be customized according to thermal and mechanical requirements

The actual performance depends on the equipment configuration and operating conditions.

Finned Air Cooler Applications

Finned Air Coolers are used in industrial systems where process heat needs to be rejected to ambient air.

Thermal Solar and CSP Plants

Finned Air Coolers can be used in selected thermal solar and concentrated solar power systems for process cooling and heat rejection duties.

Refineries and Petrochemical Plants

They can be used for cooling process fluids and hydrocarbons in refinery and petrochemical operations where air cooling is suitable.

Process Industries

Finned Air Coolers can support cooling requirements in chemical, power, manufacturing, and other process industries.

Steam Condensing Applications

Air-cooled configurations can be used for steam and vapor condensation where water-based cooling is limited or unavailable.

Customized Finned Air Cooler Manufacturing

Heat Transfer Equipments Pvt. Ltd. provides customized Finned Air Cooler solutions based on individual process requirements.

Our engineering approach considers thermal duty, process flow conditions, ambient temperature, pressure and temperature requirements, tube and fin materials, airflow arrangement, equipment dimensions, connection details, installation space, and maintenance requirements.

The manufacturing scope can include engineering, material selection, finned tube fabrication, welding, inspection, testing, surface preparation, and delivery according to project requirements.

Why Choose Us for Finned Air Coolers?

Heat Transfer Equipments Pvt. Ltd. develops Finned Air Cooler solutions around the specific cooling duty, process conditions, airflow requirements, and installation constraints of each project.

Application-Focused Engineering

Each cooler is selected and configured based on process fluid, heat rejection duty, ambient conditions, pressure, temperature, and available space.

ASME U Stamp Certified Capability

Our manufacturing capability includes ASME U Stamp certified pressure equipment for applicable projects and specified code requirements.

Customized Finned Tube Design

Tube dimensions, fin arrangement, materials, heat transfer area, airflow configuration, and connections can be tailored to the required application.

Quality-Controlled Manufacturing

Fabrication, welding, inspection, and testing are carried out according to project specifications and applicable quality requirements.

Project-Specific Support

From technical discussions and equipment design to manufacturing and delivery, the solution is developed around the customer’s process and equipment requirements.

Frequently Asked Questions

What Factors Affect Finned Air Cooler Performance?

Finned Air Cooler performance depends on process fluid flow rate, inlet and outlet temperatures, ambient air temperature, heat transfer area, fin configuration, airflow, fluid properties, and allowable pressure drop.

Can Finned Air Coolers Be Used Without Cooling Water?

Yes. They can be used where cooling water is limited, unavailable, or not preferred, as the process heat is rejected to ambient air through the finned tube surfaces.

Can a Finned Air Cooler Be Customized?

Yes. Tube and fin materials, tube dimensions, fin arrangement, heat transfer area, airflow configuration, connections, and overall equipment dimensions can be customized according to project requirements.

What Information Is Required to Design a Finned Air Cooler?

Important details include process fluid, flow rate, heat duty, inlet and outlet temperatures, operating pressure, ambient temperature, allowable pressure drop, material requirements, and installation conditions.

Do You Manufacture Finned Air Coolers in India?

Yes. Heat Transfer Equipments Pvt. Ltd. manufactures customized Finned Air Coolers in India based on the required thermal performance, operating conditions, materials, dimensions, and project specifications.

Request a Quote for a Finned Air Cooler

Looking for a reliable Finned Air Cooler manufacturer in India?

Share your process fluid details, flow rate, heat duty, inlet and outlet temperatures, operating pressure, ambient conditions, material requirements, allowable pressure drop, and installation conditions with our engineering team.

Heat Transfer Equipments Pvt. Ltd. can provide a customized Finned Air Cooler solution based on your process and equipment requirements.
