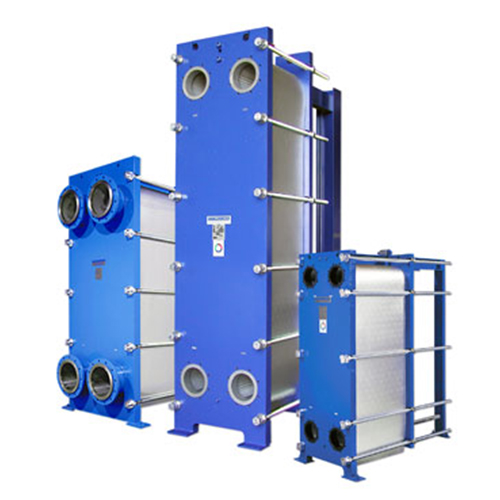

Plate Heat Exchanger

Heat Transfer Equipments Pvt. Ltd. is a Plate Heat Exchanger manufacturer in India, providing customized heat transfer solutions for industrial heating, cooling, and process applications. Plate heat exchangers are designed to transfer heat efficiently between two fluids while keeping them separated through a series of heat transfer plates.

The plate arrangement, heat transfer area, materials, connections, operating conditions, and overall configuration can be selected according to the process requirements.

What Is a Plate Heat Exchanger?

A Plate Heat Exchanger is a heat transfer equipment that uses a series of thin plates to transfer heat between two fluids.

The plates are arranged to create separate flow channels for the hot and cold fluids. Heat passes through the plate surfaces while the fluids remain separated from each other.

Compared with some conventional heat exchanger arrangements, plate designs can provide a compact heat transfer surface and can be configured according to the required heating or cooling duty.

How Does a Plate Heat Exchanger Work?

The operating principle is based on indirect heat transfer between two fluids flowing through separate channels.

Hot fluid enters one set of channels while the cold fluid flows through alternate channels. As the fluids pass through the plate channels, heat transfers through the metal plate from the hotter fluid to the colder fluid.

The flow arrangement, plate pattern, number of plates, fluid properties, temperature difference, and flow rates influence the overall heat transfer performance.

Proper sizing helps achieve the required thermal duty while maintaining suitable pressure drop and operating conditions.

Plate Heat Exchanger Design and Construction

A Plate Heat Exchanger consists of multiple components designed to provide efficient heat transfer and reliable fluid separation.

Heat Transfer Plates

The plates provide the primary heat transfer surface. Their thickness, material, surface pattern, and number can be selected according to the application requirements.

Gaskets and Sealing Arrangement

In gasketed configurations, gaskets are installed between the plates to maintain separate flow channels and prevent fluid leakage.

Gasket material is selected according to fluid compatibility, operating temperature, and service conditions.

Frame and Connections

The frame supports the plate pack and provides the required mechanical arrangement for assembly. Fluid connections can be positioned according to the equipment configuration and installation requirements.

Types of Plate Heat Exchangers

Different plate heat exchanger configurations can be selected according to the process requirements, fluid properties, temperature, pressure, and maintenance requirements.

Gasketed Plate Heat Exchanger

Gasketed plate heat exchangers use gaskets between individual plates to form separate fluid channels. The plate pack can be opened for inspection, cleaning, and maintenance when required.

Brazed Plate Heat Exchanger

Brazed plate heat exchangers use a brazing process to join the plates and form a compact heat transfer assembly. They can be considered for suitable heating and cooling applications where a compact configuration is required.

Customized Plate Heat Exchanger

Application-specific plate heat exchanger configurations can be developed according to required heat duty, flow rates, operating pressure and temperature, fluid properties, material requirements, and installation space.

Materials Used for Plate Heat Exchangers

Material selection depends on the fluids being handled, operating temperature, pressure, corrosion conditions, and expected service environment.

Stainless Steel Plates

Stainless steel plates can be selected for applications where corrosion resistance and compatibility with the process fluid are important considerations.

Suitable Gasket Materials

Gaskets are selected according to the fluid, operating temperature, chemical compatibility, and service conditions of the application.

Other Application-Specific Materials

Other suitable materials and alloys can be considered where specific process conditions require additional corrosion resistance, temperature capability, or material compatibility.

Plate Heat Exchanger Design Parameters

Proper selection of a plate heat exchanger requires evaluation of the actual process and operating conditions.

Important design parameters include:

• Required heat duty
• Hot and cold fluid types
• Fluid flow rates
• Inlet and outlet temperatures
• Operating and design pressure
• Operating and design temperature
• Heat transfer area
• Plate material
• Gasket material
• Allowable pressure drop
• Fluid properties
• Fouling conditions
• Corrosion requirements
• Connection arrangement
• Available installation space
• Cleaning and maintenance requirements

The final plate configuration is determined according to the required thermal performance and mechanical conditions.

Advantages of Plate Heat Exchangers

Plate Heat Exchangers can provide several benefits for suitable industrial applications:

• Efficient indirect heat transfer
• Compact heat transfer arrangement
• Separate flow paths for hot and cold fluids
• Flexible heat transfer area
• Suitable for heating and cooling duties
• Different plate and gasket materials can be selected
• Convenient inspection and maintenance for suitable configurations
• Can be customized according to process requirements

Actual performance depends on the plate design, fluid properties, operating conditions, heat duty, and selected configuration.

Plate Heat Exchanger Applications

Plate Heat Exchangers can be used across different industries for heating, cooling, heat recovery, and temperature control applications.

Chemical and Process Industries

They can be used for process-fluid heating and cooling where controlled heat transfer between separate fluid streams is required.

Food and Beverage Processing

Plate heat exchangers can be considered for suitable heating and cooling duties in food and beverage processing systems, depending on the fluid and hygiene requirements.

Pharmaceutical Industries

They can be used in selected pharmaceutical process and utility systems where controlled indirect heat transfer is required.

HVAC and Utility Systems

Plate heat exchangers can be used for water heating, chilled-water systems, heat recovery, and other utility applications.

General Industrial Applications

They can also be used in industrial process heating, cooling, temperature control, and heat recovery systems according to the application requirements.

Customized Plate Heat Exchanger Solutions

Heat Transfer Equipments Pvt. Ltd. provides customized Plate Heat Exchanger solutions based on specific process and installation requirements.

Our engineering approach considers heat duty, fluid properties, flow rates, inlet and outlet temperatures, operating pressure and temperature, plate and gasket materials, allowable pressure drop, connection arrangement, installation space, and maintenance requirements.

The final configuration is developed according to the required thermal and mechanical conditions of the application.

Plate Heat Exchanger Manufacturing and Quality

Heat Transfer Equipments Pvt. Ltd. focuses on supplying Plate Heat Exchangers according to application requirements, material specifications, dimensional requirements, and project standards.

Application-Based Engineering

The equipment configuration is developed according to the required heat transfer duty, fluid characteristics, flow rates, and operating conditions.

Material Selection

Plate, gasket, frame, and other materials are selected according to fluid compatibility, temperature, pressure, corrosion conditions, and service requirements.

Fabrication and Assembly

Manufacturing and assembly activities are carried out according to the required equipment configuration and project specifications.

Inspection and Testing

Inspection and testing can be carried out according to applicable project requirements and quality standards to verify the equipment before delivery.

Frequently Asked Questions

What Is a Plate Heat Exchanger Used For?

A Plate Heat Exchanger is used for indirect heating, cooling, heat recovery, and temperature control between two separate fluid streams.

How Does a Plate Heat Exchanger Transfer Heat?

Heat is transferred through the metal plates separating the hot and cold fluid channels. The two fluids remain separated while heat passes through the plate surface.

Can Plate Heat Exchangers Be Customized?

Yes. Plate arrangement, heat transfer area, materials, connections, operating conditions, and overall configuration can be selected according to the application requirements.

What Materials Are Used for Plate Heat Exchangers?

Stainless steel and other suitable materials can be considered for the plates, while gasket materials are selected according to fluid compatibility and operating temperature.

What Information Is Required for Plate Heat Exchanger Selection?

Important information includes heat duty, fluid type, flow rate, inlet and outlet temperatures, operating pressure, design temperature, allowable pressure drop, material requirements, and installation conditions.

Do You Manufacture Plate Heat Exchangers in India?

Yes. Heat Transfer Equipments Pvt. Ltd. provides customized Plate Heat Exchanger solutions in India based on thermal, mechanical, material, dimensional, and project-specific requirements.

Request a Quote for a Plate Heat Exchanger

Looking for a reliable Plate Heat Exchanger manufacturer in India?

Share your heat duty, fluid details, flow rates, inlet and outlet temperatures, operating pressure and temperature, material requirements, allowable pressure drop, and installation conditions with our engineering team.

Heat Transfer Equipments Pvt. Ltd. can provide a customized Plate Heat Exchanger solution based on your process and equipment requirements.
