Mist Eliminator

Heat Transfer Equipments Pvt. Ltd. is a Mist Eliminator manufacturer in India, providing customized mist removal solutions for industrial processes involving oil mist, coolant mist, acid mist, and other entrained liquid droplets.

Mist Eliminators are designed to separate liquid droplets from gas or air streams, helping reduce liquid carryover and improve downstream process conditions. The equipment configuration, separation elements, materials, dimensions, and connections can be selected according to the process requirements.

What Is a Mist Eliminator?

A Mist Eliminator is a separation device used to remove entrained liquid droplets from a gas or air stream.

During industrial processes, fine liquid droplets can become carried along with gases or air. These droplets may include oil, machine coolant, chemical solutions, or other process liquids.

A Mist Eliminator provides a separation path that allows liquid droplets to collect and drain while the cleaned gas or air continues through the system.

How Does a Mist Eliminator Work?

The operating principle is based on separating liquid droplets from a moving gas or air stream.

The gas or air containing entrained droplets enters the Mist Eliminator and passes through its separation elements. Changes in flow direction and velocity cause liquid droplets to separate from the gas stream and collect on the surfaces of the separator.

The collected liquid then drains through a suitable drainage arrangement, while the gas or air exits with reduced liquid carryover.

Separation performance depends on droplet size, gas velocity, fluid properties, pressure drop, separator configuration, and operating conditions.

Mist Eliminator Construction and Components

Mist Eliminators are constructed according to the required separation performance, process conditions, and installation arrangement.

Typical components can include:

• Mist separation elements
• Support frames or grids
• Gas or air inlet and outlet connections
• Liquid collection and drainage arrangement
• Housing or vessel interface where applicable
• Mounting and supporting arrangements
• Inspection or access provisions where required

The separator dimensions, element configuration, material selection, drainage arrangement, and connection sizes can be customized according to the application.

Types of Mist Eliminators

Different separation arrangements can be selected depending on process conditions and required droplet removal performance.

Mesh Pad Mist Eliminators

Mesh pads provide a large contact surface for entrained droplets to coalesce and drain from the gas stream. They can be suitable for applications involving fine liquid droplets and moderate gas velocities.

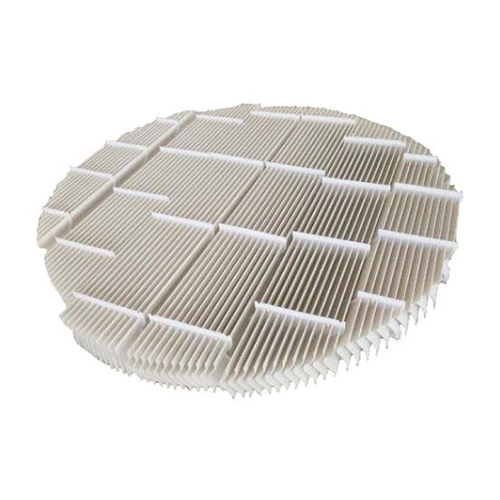

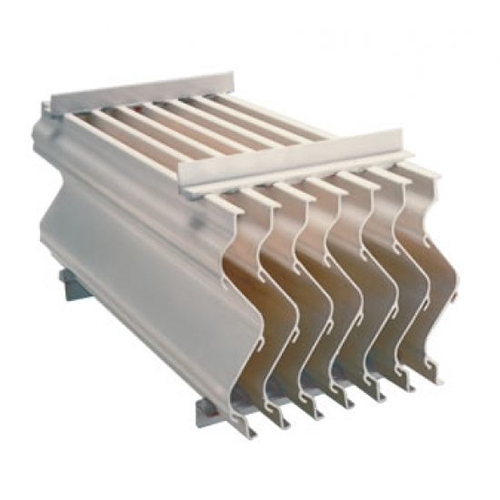

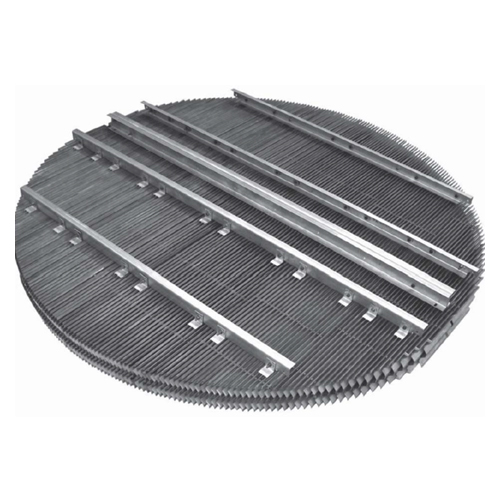

Vane Type Mist Eliminators

Vane-type separators use specially arranged blades to change the direction of gas flow and promote separation of entrained liquid droplets.

Customized Mist Separation Systems

Application-specific configurations can be developed where the process requires particular separation efficiency, pressure drop, material compatibility, capacity, or installation dimensions.

Key Mist Eliminator Selection Factors

Proper selection is important for achieving effective droplet separation without creating excessive pressure drop.

Important factors include:

• Gas or air flow rate
• Liquid droplet size
• Gas velocity
• Process fluid properties
• Operating and design pressure
• Operating and design temperature
• Required separation efficiency
• Allowable pressure drop
• Material compatibility
• Fouling conditions
• Corrosion requirements
• Liquid drainage requirements
• Available installation space
• Cleaning and maintenance requirements

The final configuration is selected according to actual process conditions and customer specifications.

Advantages of Mist Eliminators

Mist Eliminators can provide several benefits for suitable industrial applications:

• Reduces entrained liquid carryover
• Helps improve gas or air stream quality
• Supports downstream equipment protection
• Enables collection and drainage of separated liquids
• Can reduce contamination of surrounding equipment
• Available in different separation configurations
• Can be designed for specific process conditions
• Suitable for various industrial liquid and gas separation duties

Actual performance depends on separator design, process conditions, droplet characteristics, and operating parameters.

Mist Eliminator Applications

Mist Eliminators can be used in industrial processes where liquid droplets need to be separated from gas or air streams.

Steel Plants

Mist separation systems can be used in selected steel manufacturing processes where oil, coolant, or other liquid droplets may be present in process air streams.

Sugar Plants

They can be considered for suitable process ventilation and separation duties involving entrained liquid droplets.

Paper Mills

Mist Eliminators can support process air treatment where oil, water, or chemical droplets may be carried with the air stream.

Machine Tools

They can be used for removing machine coolant and oil mist generated during machining operations.

Custom Mist Eliminator Solutions

Heat Transfer Equipments Pvt. Ltd. provides customized Mist Eliminator solutions based on specific process and installation requirements.

Our engineering approach considers gas or air flow rate, liquid properties, droplet characteristics, required separation efficiency, pressure drop, operating pressure and temperature, material compatibility, drainage requirements, equipment dimensions, and maintenance access.

The equipment can be developed according to the required separation performance and project-specific mechanical requirements.

Mist Eliminator Manufacturing and Quality

Heat Transfer Equipments Pvt. Ltd. focuses on manufacturing Mist Eliminators according to application requirements, material specifications, dimensional requirements, and project standards.

Application-Based Engineering

Mist separation equipment is configured according to process flow, droplet characteristics, separation requirements, and operating conditions.

Material Selection

Materials are selected according to the process fluid, temperature, pressure, corrosion conditions, and expected service environment.

Customized Construction

Separator dimensions, separation elements, connections, supports, drainage arrangements, and installation details can be developed according to project requirements.

Inspection and Testing

Fabrication and inspection activities can be carried out according to applicable project specifications and quality requirements.

Project-Specific Technical Support

Technical discussions and equipment development are focused on the customer’s process conditions, separation requirements, and installation constraints.

Frequently Asked Questions

What Droplet Size Can a Mist Eliminator Separate?

The separation capability depends on the mist eliminator type, gas velocity, liquid properties, droplet characteristics, and separation element design. The suitable configuration is selected according to the required separation performance.

How Do I Select the Right Mist Eliminator?

Selection depends on gas or air flow rate, droplet size, process fluid properties, operating pressure and temperature, required separation efficiency, allowable pressure drop, and available installation space.

What Materials Are Available for Mist Eliminators?

Materials can be selected based on the process fluid, operating temperature, pressure, corrosion conditions, and service environment. Suitable metallic and application-specific materials can be considered during design.

How Can a Mist Eliminator Be Maintained?

Maintenance depends on the separator configuration and process conditions. Periodic inspection, cleaning of separation elements, checking drainage arrangements, and monitoring pressure drop can help maintain effective operation.

Can You Manufacture Mist Eliminators to Customer Specifications?

Yes. Heat Transfer Equipments Pvt. Ltd. can manufacture customized Mist Eliminators based on required capacity, separation performance, materials, dimensions, connections, drainage arrangements, and project specifications.

Request a Quote for a Mist Eliminator

Looking for a reliable Mist Eliminator manufacturer in India?

Share your gas or air flow rate, process fluid details, droplet characteristics, operating pressure and temperature, required separation efficiency, allowable pressure drop, material requirements, and installation conditions with our engineering team.

Heat Transfer Equipments Pvt. Ltd. can provide a customized Mist Eliminator solution based on your process and equipment requirements.
