Vertical Shell and Tube Heat Exchanger

Heat Transfer Equipments Pvt. Ltd. is a Vertical Shell and Tube Heat Exchanger manufacturer in India, providing customized heat transfer equipment for industrial heating, cooling, condensation, and process applications.

Vertical Shell and Tube Heat Exchangers are designed with the shell and tube bundle arranged in a vertical orientation. This configuration can be suitable for applications where installation space, fluid flow arrangement, drainage, maintenance access, and process requirements need to be considered during equipment selection.

What Is a Vertical Shell and Tube Heat Exchanger?

A Vertical Shell and Tube Heat Exchanger is a heat transfer equipment consisting of a shell containing a bundle of tubes. One fluid flows through the tubes while another fluid flows around the tubes inside the shell.

Heat is transferred through the tube walls without direct mixing of the two fluids.

Shell and Tube Heat Exchangers are widely used in refineries, chemical processing, power generation, thermal processing, and other industrial applications where reliable heat transfer is required.

The vertical arrangement can be selected according to the process conditions, available installation space, fluid characteristics, and equipment layout.

How Does a Vertical Shell and Tube Heat Exchanger Work?

The heat exchanger operates by allowing two fluids at different temperatures to flow through separate passages.

Depending on the design, one process fluid passes through the tube side while the heating or cooling medium flows through the shell side. Heat moves through the tube walls from the hotter fluid to the cooler fluid.

The fluids remain separated throughout the heat transfer process, preventing direct contact between the two media.

Required performance depends on heat duty, fluid flow rate, inlet and outlet temperatures, operating pressure, temperature difference, tube arrangement, heat transfer area, and allowable pressure drop.

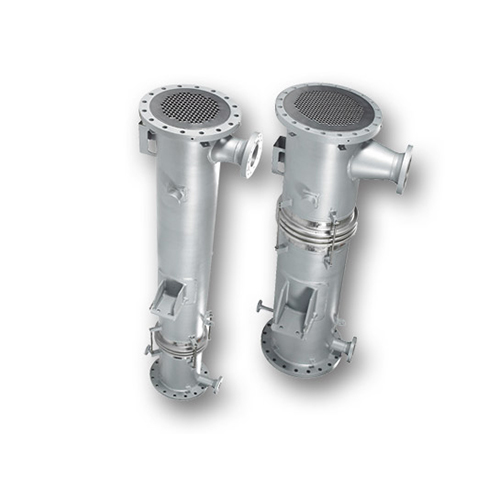

Vertical Shell and Tube Heat Exchanger Construction

A Vertical Shell and Tube Heat Exchanger typically consists of a shell, tube bundle, tube sheets, headers or channel arrangements, and process connections.

Typical components can include:

• Shell
• Heat transfer tube bundle
• Tube sheets
• Channel or bonnet
• Inlet and outlet nozzles
• Baffles where required
• Supports and mounting arrangement
• Vent and drain connections where required

The tube diameter, tube length, shell diameter, number of tubes, tube pitch, baffle arrangement, and materials can be selected according to the required thermal and mechanical conditions.

Types of Vertical Shell and Tube Heat Exchangers

Different configurations can be selected according to thermal duty, pressure, temperature, fluid properties, and maintenance requirements.

Fixed Tube Sheet Configuration

Fixed tube sheet heat exchangers have the tube bundle secured between tube sheets. This arrangement can be suitable for applications where tube-side and shell-side operating conditions allow a fixed configuration.

Floating Head Configuration

Floating head arrangements allow greater flexibility for applications involving differential thermal expansion between the shell and tube bundle.

The appropriate configuration depends on design temperature, pressure, fluid characteristics, fouling conditions, and maintenance requirements.

Vertical Heat Exchanger Design Considerations

Proper design is important for achieving the required heat transfer performance and reliable operation.

Important design parameters include:

• Required heat duty
• Process fluid type
• Flow rate
• Fluid inlet and outlet temperatures
• Operating and design pressure
• Operating and design temperature
• Allowable pressure drop
• Tube material
• Shell material
• Heat transfer area
• Tube diameter and length
• Tube arrangement
• Fouling conditions
• Corrosion requirements
• Installation height and available space
• Cleaning and maintenance requirements

The final configuration is selected according to actual process conditions and customer specifications.

Advantages of Vertical Shell and Tube Heat Exchangers

Vertical Shell and Tube Heat Exchangers can provide several advantages for suitable industrial applications:

• Efficient heat transfer between separated fluids
• Suitable for heating and cooling duties
• Vertical arrangement can help optimize equipment layout
• Suitable for industrial high-pressure applications when properly designed
• Flexible tube and shell configurations
• Can be designed for different process fluids
• Suitable for continuous industrial operation
• Customizable according to thermal and mechanical requirements

The actual advantages depend on the selected configuration and operating conditions.

Industrial Applications

Vertical Shell and Tube Heat Exchangers are used across industries requiring controlled heat transfer between process fluids.

Typical applications include:

• Chemical industries
• Petroleum refineries
• Petrochemical processing
• Natural gas plants
• Power plants
• Thermal power plants
• Air conditioning systems
• Heat processing industries
• Industrial heating systems
• Industrial cooling systems
• Process condensation and heat recovery

The suitable heat exchanger configuration depends on the process fluid, heat duty, operating conditions, and installation requirements.

Customized Vertical Shell and Tube Heat Exchanger Manufacturing

Heat Transfer Equipments Pvt. Ltd. provides customized Vertical Shell and Tube Heat Exchanger solutions according to specific project requirements.

Our engineering approach considers thermal duty, fluid properties, operating pressure and temperature, heat transfer area, tube and shell materials, configuration, connection requirements, installation space, and maintenance conditions.

Manufacturing can include engineering, material selection, fabrication, tube bundle assembly, welding, inspection, testing, surface preparation, and delivery according to project requirements.

Why Choose Heat Transfer Equipments Pvt. Ltd.?

Heat Transfer Equipments Pvt. Ltd. is an ISO 9001:2015 certified and ASME U Stamp Certified manufacturer of heat transfer equipment, serving industrial customers in India and international markets.

For Vertical Shell and Tube Heat Exchanger projects, our focus includes:

• Application-specific engineering
• Customized thermal and mechanical design
• ASME U Stamp certified manufacturing
• Suitable material selection
• Controlled fabrication
• Project-specific inspection and testing
• Equipment designed according to operating conditions
• Domestic and export project support
• Technical assistance based on customer requirements

Frequently Asked Questions

Can a Vertical Shell and Tube Heat Exchanger be customized?

Yes. Shell diameter, tube dimensions, heat transfer area, materials, connections, pressure and temperature ratings, and overall configuration can be customized according to the application.

What is the difference between fixed tube sheet and floating head designs?

A fixed tube sheet arrangement secures the tube bundle between fixed tube sheets, while a floating head arrangement provides greater flexibility for differential thermal expansion and selected maintenance requirements.

What information is required for a Vertical Shell and Tube Heat Exchanger?

Important details include fluid type, flow rate, heat duty, inlet and outlet temperatures, operating pressure, allowable pressure drop, material requirements, and available installation space.

Are Vertical Shell and Tube Heat Exchangers suitable for high-pressure applications?

They can be designed for high-pressure industrial applications when the required mechanical design, materials, construction standards, and operating conditions are properly considered.

What industries use Vertical Shell and Tube Heat Exchangers?

They are used in chemical industries, petroleum refineries, petrochemical plants, natural gas processing, power generation, thermal processing, and other industrial heat transfer systems.

Do you manufacture Vertical Shell and Tube Heat Exchangers in India?

Yes. Heat Transfer Equipments Pvt. Ltd. manufactures customized Vertical Shell and Tube Heat Exchangers in India according to thermal, mechanical, material, dimensional, and project-specific requirements.

Request a Quote for a Vertical Shell and Tube Heat Exchanger

Looking for a reliable Vertical Shell and Tube Heat Exchanger manufacturer in India?

Share your process fluid details, flow rate, heat duty, inlet and outlet temperatures, operating pressure, material requirements, allowable pressure drop, and installation conditions with our engineering team.

Heat Transfer Equipments Pvt. Ltd. can provide a customized Vertical Shell and Tube Heat Exchanger solution based on your process and equipment requirements.
