Kettle Reboiler Type Heat Exchanger

Heat Transfer Equipments Pvt. Ltd. is a Kettle Reboiler manufacturer in India, providing customized heat transfer equipment for distillation, evaporation, and industrial process heating applications. Our Kettle Reboilers are designed to supply the required heat for partial vaporization of process liquids and support continuous vapor generation in process systems.

Kettle Reboilers are commonly used where controlled boiling, high vaporization duty, and reliable vapor-liquid separation are required. The equipment can be engineered according to heat duty, process-fluid properties, operating pressure, temperature, vaporization rate, materials, and project-specific requirements.

Kettle Reboiler for Industrial Process Heating

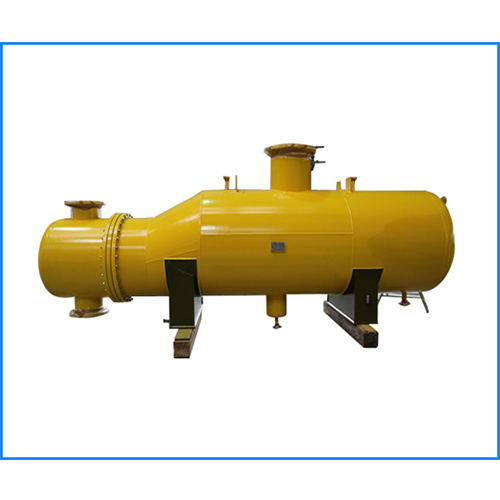

A Kettle Reboiler is a specialized heat exchanger used to transfer heat to a process liquid and generate vapor. It is commonly associated with the bottom section of distillation systems, where the generated vapor is returned to the column to support the separation process.

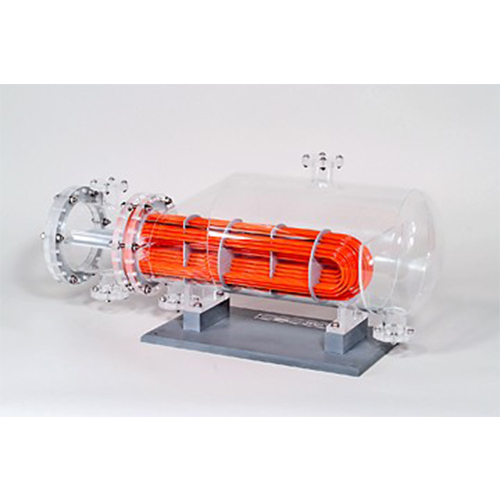

The equipment generally consists of an enlarged shell containing a submerged tube bundle. A heating medium such as steam or another suitable hot fluid passes through the tubes, while the process liquid surrounds the tube bundle on the shell side.

The enlarged shell also provides space for vapor disengagement, allowing generated vapor to separate from entrained liquid before leaving the equipment.

How a Kettle Reboiler Works

The process liquid enters the shell side of the Kettle Reboiler and covers the tube bundle. The heating medium flows through the tubes and transfers heat through the tube walls to the surrounding process liquid.

As the liquid receives heat, part of it vaporizes. The generated vapor rises into the vapor disengagement space and can then return to the connected distillation column or process system.

An internal weir helps maintain the required liquid level and keeps the tube bundle submerged during operation. The remaining liquid can overflow across the weir and leave through the appropriate outlet as the bottoms or process liquid stream.

This arrangement provides a stable boiling surface and a dedicated space for vapor-liquid separation.

Kettle Reboiler Construction and Heat Transfer Arrangement

The construction of a Kettle Reboiler is based on the required thermal duty, pressure conditions, process fluid, heating medium, and mechanical design requirements.

Typical arrangements include:

• Enlarged horizontal shell
• Submerged tube bundle
• Tube sheets
• Heating-medium inlet and outlet connections
• Process-liquid inlet
• Vapor outlet
• Liquid or bottoms outlet
• Internal overflow weir
• Suitable supports and structural components
• Vents and drains where required

The tube bundle remains immersed in the process liquid during normal operation. This arrangement allows heat to be transferred from the heating medium to the boiling liquid while providing space above the liquid level for vapor disengagement.

Boiling and Vapor Generation in Kettle Reboilers

Unlike conventional single-phase heat exchangers, a Kettle Reboiler is specifically designed for phase-change heat transfer.

The heating medium supplies energy to the process liquid until a portion of the liquid changes into vapor. The amount of vapor generated depends on the required process duty, operating pressure, fluid properties, heating-medium conditions, and available heat transfer area.

The vapor generated by the reboiler can provide the upward vapor flow required by a distillation column, while the less volatile liquid remains in the liquid phase and is withdrawn as the bottoms product.

This makes Kettle Reboilers particularly useful for process systems where controlled vapor generation is an essential part of the operation.

Kettle Reboiler Design Considerations

Proper engineering is important because the equipment handles both heat transfer and boiling.

Our Kettle Reboiler design can consider:

• Required heat duty
• Process-liquid flow rate
• Heating-medium flow rate
• Process inlet and outlet conditions
• Operating and design pressure
• Operating and design temperature
• Required vaporization rate
• Fluid physical properties
• Allowable pressure drop
• Heat transfer area
• Tube material
• Shell material
• Fouling tendency
• Thermal expansion
• Liquid level requirements
• Vapor disengagement requirements
• Maintenance and cleaning access

The final design is selected according to the actual process conditions and customer specifications.

Materials for Kettle Reboiler Manufacturing

Material selection depends on process-fluid composition, operating temperature, pressure, corrosion conditions, heating medium, and project requirements.

Depending on the application, suitable materials may include:

• Carbon steel
• Stainless steel
• Low-temperature carbon steel
• Suitable alloy steels
• Other corrosion-resistant materials where required

Tube, shell, tube-sheet, and other wetted components can be selected according to the applicable design conditions and material compatibility requirements.

Industrial Applications of Kettle Reboilers

Kettle Reboilers are used in process industries where controlled vaporization and reboiling are required.

Typical applications include:

• Distillation columns
• Refineries
• Petrochemical plants
• Oil and gas processing
• Chemical processing plants
• Solvent recovery systems
• Hydrocarbon processing
• Natural gas processing
• Fertilizer and chemical industries
• Industrial separation processes

The exact application and equipment configuration depend on the process chemistry, required vaporization duty, operating conditions, and connected process equipment.

Advantages of Kettle Reboiler Heat Exchangers

A properly designed Kettle Reboiler can provide several process benefits:

• Provides controlled heat input for liquid vaporization.
• Supports reliable vapor generation for distillation processes.
• Provides a large liquid-holding volume around the tube bundle.
• Allows vapor disengagement within the enlarged shell.
• Can accommodate significant vaporization requirements.
• Provides a practical arrangement for inspection and maintenance.
• Can be customized for different process fluids and operating conditions.
• Suitable for a wide range of industrial process applications.

Kettle-type construction is particularly useful where stable boiling and vapor-liquid separation are important design requirements.

Kettle Reboiler Selection Factors

Selecting the appropriate Kettle Reboiler requires accurate process information.

Important inputs include:

• Required heat duty
• Process-fluid name and properties
• Process flow rate
• Heating-medium type
• Heating-medium pressure and temperature
• Operating pressure
• Operating temperature
• Required vaporization percentage
• Allowable pressure drop
• Materials of construction
• Fouling characteristics
• Available installation space
• Piping and nozzle requirements
• Inspection and maintenance requirements

These parameters help determine the required heat transfer area, tube configuration, shell dimensions, materials, and overall equipment arrangement.

Custom Kettle Reboiler Manufacturing

Heat Transfer Equipments Pvt. Ltd. provides custom-engineered Kettle Reboiler solutions based on individual process requirements.

Our engineering approach considers thermal duty, process conditions, mechanical requirements, material compatibility, equipment dimensions, connections, and applicable project specifications.

The manufacturing scope can include engineering, material procurement, fabrication, welding, inspection, testing, surface preparation, and delivery according to customer requirements.

Why Choose Heat Transfer Equipments Pvt. Ltd.?

Heat Transfer Equipments Pvt. Ltd. is an ISO 9001:2015 certified manufacturer and exporter of heat transfer equipment and cooling systems, serving industrial customers in India and international markets. The company was established in Coimbatore in 2012.

For Kettle Reboiler projects, our focus includes:

• Application-specific engineering
• Customized thermal and mechanical design
• Suitable material selection
• Controlled fabrication
• Project-specific inspection and testing
• Equipment designed around operating conditions
• Domestic and export project support
• Technical assistance based on customer requirements

Frequently Asked Questions

What is a Kettle Reboiler?

A Kettle Reboiler is a heat exchanger designed to heat a process liquid and generate vapor. It commonly uses a submerged tube bundle inside an enlarged shell and is widely used in distillation and other phase-change processes.

How does a Kettle Reboiler work?

A heating medium flows through the tube bundle and transfers heat to the process liquid surrounding the tubes. Part of the liquid boils and produces vapor, which is separated in the shell and directed to the connected process system.

What is the purpose of the weir in a Kettle Reboiler?

The internal weir helps maintain the required liquid level so that the tube bundle remains properly submerged. It also helps establish the liquid outlet level and supports the intended boiling and vapor disengagement arrangement.

Where are Kettle Reboilers used?

Kettle Reboilers are commonly used in distillation, refinery, petrochemical, chemical, oil and gas, solvent recovery, and other process applications requiring controlled vapor generation.

Can Kettle Reboilers be customized?

Yes. Kettle Reboilers can be customized according to heat duty, process-fluid properties, operating pressure and temperature, vaporization requirements, materials, heat transfer area, dimensions, connections, and project specifications.

Request a Quote for a Kettle Reboiler

Looking for a reliable Kettle Reboiler manufacturer in India?

Share your required heat duty, process-fluid details, flow rate, operating pressure and temperature, heating-medium details, vaporization requirement, material specification, and installation requirements with our engineering team.

Heat Transfer Equipments Pvt. Ltd. can develop a customized Kettle Reboiler solution based on your process and equipment requirements.
