Brazed Plate Heat Exchanger

Heat Transfer Equipments Pvt. Ltd. is a Brazed Plate Heat Exchanger manufacturer in India, providing compact heat transfer solutions for heating, cooling, refrigeration, heat pump, oil cooling, and industrial process applications.

Brazed Plate Heat Exchangers are designed with corrugated metal plates joined through a brazing process to form separate flow channels for the fluids. The plate arrangement, materials, connection configuration, pressure rating, and heat transfer area can be selected according to the application requirements.

What Is a Brazed Plate Heat Exchanger?

A Brazed Plate Heat Exchanger is a compact heat transfer equipment that uses a series of corrugated metal plates to transfer heat between two fluids.

The plates are arranged to create separate flow passages for the hot and cold fluids. A brazing process joins the plates and forms a sealed heat transfer assembly without the need for conventional gaskets between individual plates.

This compact construction makes brazed plate heat exchangers suitable for applications where efficient heat transfer and space-saving equipment arrangements are required.

How Does a Brazed Plate Heat Exchanger Work?

The working principle is based on indirect heat transfer between two fluids flowing through separate channels.

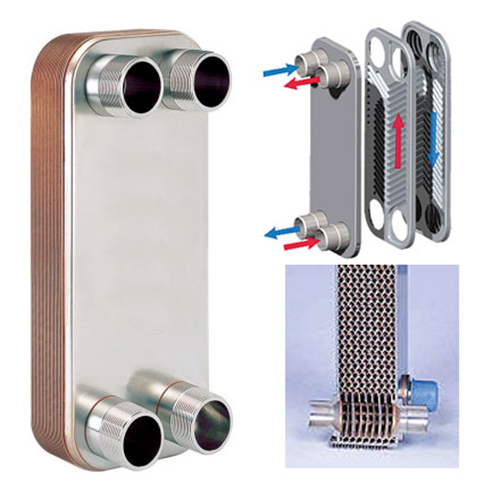

Hot fluid enters one set of channels while the cold fluid flows through alternate channels. As the fluids move through the corrugated passages, heat passes through the metal plates from the hotter fluid to the colder fluid.

The plate pattern promotes fluid movement across the heat transfer surface and helps improve heat transfer between the two streams.

Heat transfer performance depends on factors such as flow rate, fluid properties, inlet and outlet temperatures, temperature difference, plate arrangement, pressure drop, and operating conditions.

Brazed Plate Heat Exchanger Design and Construction

A Brazed Plate Heat Exchanger is constructed as a compact plate assembly designed for the required thermal and mechanical conditions.

Heat Transfer Plates

Corrugated metal plates form the primary heat transfer surface. The plate thickness, pattern, number of plates, and material can be selected according to the application.

The corrugated arrangement also forms the flow channels through which the hot and cold fluids pass.

Brazed Joints

The individual plates are joined using a brazing process to create a sealed and mechanically stable heat exchanger assembly.

The brazed construction eliminates the requirement for conventional gaskets between the plates and provides a compact arrangement.

Fluid Connections

Connections are provided for the inlet and outlet of the two fluid circuits. Connection size and arrangement can be selected according to flow requirements and installation conditions.

Types and Configurations

Brazed Plate Heat Exchangers can be configured according to the required heat duty, operating pressure, fluid characteristics, and application.

Standard Brazed Plate Heat Exchanger

Standard configurations can be used for suitable heating and cooling applications where the required operating conditions fall within the equipment design range.

High-Pressure Brazed Plate Heat Exchanger

High-pressure configurations can be selected for applications requiring higher operating pressure capability. The final selection should be based on the actual fluid pressure, temperature, and equipment specifications.

Customized Configurations

Application-specific configurations can be considered based on heat duty, flow rates, fluid properties, connection requirements, pressure drop, operating temperature, and available installation space.

Brazed Plate Heat Exchanger Design Parameters

Proper selection requires evaluation of the actual process and operating conditions.

Important design parameters include:

• Required heat duty
• Hot and cold fluid types
• Fluid flow rates
• Inlet and outlet temperatures
• Operating and design pressure
• Operating and design temperature
• Heat transfer area
• Plate material
• Allowable pressure drop
• Fluid properties
• Fouling conditions
• Corrosion requirements
• Connection size and arrangement
• Installation space
• Cleaning and maintenance requirements

The final configuration should be selected according to the required thermal performance and mechanical conditions.

Advantages of Brazed Plate Heat Exchangers

Brazed Plate Heat Exchangers can provide several benefits for suitable applications:

• Compact construction
• Efficient heat transfer
• Reduced equipment footprint
• Separate flow paths for hot and cold fluids
• No conventional plate gaskets in brazed construction
• Suitable for selected heating and cooling applications
• Different pressure and connection configurations can be considered
• Suitable for applications with limited installation space
• Can provide efficient heat transfer with an appropriately selected plate arrangement

Actual performance depends on the equipment design, fluid properties, operating conditions, and application requirements.

Brazed Plate Heat Exchanger Applications

Brazed Plate Heat Exchangers are used in various heating, cooling, refrigeration, and process applications.

Heat Pump Systems

They can be used for heat transfer between refrigerant, water, glycol, or other suitable fluids in heat pump systems.

Refrigeration and Air Conditioning

Brazed plate heat exchangers can be used in refrigeration and air conditioning systems for suitable condenser, evaporator, and fluid cooling duties.

Hydraulic Oil Cooling

They can be used to transfer heat from hydraulic oil to water or another suitable cooling medium, depending on the system requirements.

Domestic and Industrial Water Heating

Brazed plate heat exchangers can be used for indirect water heating where heat needs to be transferred from a hot fluid to the water circuit.

Process Heating and Cooling

They can be considered for selected industrial processes requiring compact indirect heating or cooling between separate fluid streams.

Solar and Chiller Applications

Brazed plate heat exchangers can be used in suitable solar thermal, chiller, and utility systems where compact heat transfer equipment is required.

Materials Used for Brazed Plate Heat Exchangers

Material selection depends on fluid compatibility, operating pressure and temperature, corrosion conditions, and service requirements.

Typical construction may include:

• Stainless steel heat transfer plates
• Suitable brazing material
• Application-specific connection materials
• Other compatible materials where required by the service conditions

The final material selection should be based on the fluids being handled and the expected operating environment.

Customized Brazed Plate Heat Exchanger Solutions

Heat Transfer Equipments Pvt. Ltd. provides customized Brazed Plate Heat Exchanger solutions based on specific process and installation requirements.

Our engineering approach considers heat duty, fluid properties, flow rates, inlet and outlet temperatures, operating pressure and temperature, allowable pressure drop, plate material, connection requirements, and available installation space.

The final configuration is selected according to the required thermal performance and application conditions.

Brazed Plate Heat Exchanger Manufacturing and Quality

Heat Transfer Equipments Pvt. Ltd. focuses on supplying heat transfer equipment according to application requirements, material specifications, dimensional requirements, and project standards.

Application-Based Engineering

Equipment selection is based on the required heat duty, fluid characteristics, flow rates, temperature conditions, pressure, and installation requirements.

Material Selection

Plate and other construction materials are selected according to fluid compatibility, temperature, pressure, corrosion conditions, and service requirements.

Manufacturing and Assembly

Manufacturing and assembly activities are carried out according to the required equipment configuration and project specifications.

Inspection and Testing

Inspection and testing can be carried out according to applicable project requirements and quality standards before delivery.

Frequently Asked Questions (FAQ):

What Is a Brazed Plate Heat Exchanger Used For?

A Brazed Plate Heat Exchanger is used for indirect heating, cooling, refrigeration, heat pump, oil cooling, and selected industrial process applications.

How Does a Brazed Plate Heat Exchanger Transfer Heat?

Hot and cold fluids flow through separate channels formed by the corrugated plates. Heat passes through the metal plate surfaces without direct mixing of the fluids.

Can Brazed Plate Heat Exchangers Be Customized?

Yes. Heat transfer area, plate configuration, connection arrangement, materials, operating conditions, and overall equipment selection can be based on the application requirements.

Are Brazed Plate Heat Exchangers Suitable for High-Pressure Applications?

Suitable brazed plate configurations can be considered for higher-pressure applications. Selection should be based on the actual operating and design pressure, temperature, fluid properties, and equipment specifications.

What Information Is Required for Selection?

Important information includes heat duty, fluid type, flow rate, inlet and outlet temperatures, operating pressure, design temperature, allowable pressure drop, material requirements, and installation conditions.

Do You Manufacture Brazed Plate Heat Exchangers in India?

Yes. Heat Transfer Equipments Pvt. Ltd. provides Brazed Plate Heat Exchanger solutions in India based on thermal, mechanical, material, dimensional, and project-specific requirements.

Request a Quote for a Brazed Plate Heat Exchanger

Looking for a reliable Brazed Plate Heat Exchanger manufacturer in India?

Share your heat duty, fluid details, flow rates, inlet and outlet temperatures, operating pressure and temperature, allowable pressure drop, material requirements, and installation conditions with our engineering team.

Heat Transfer Equipments Pvt. Ltd. can provide a customized Brazed Plate Heat Exchanger solution based on your process and equipment requirements.
